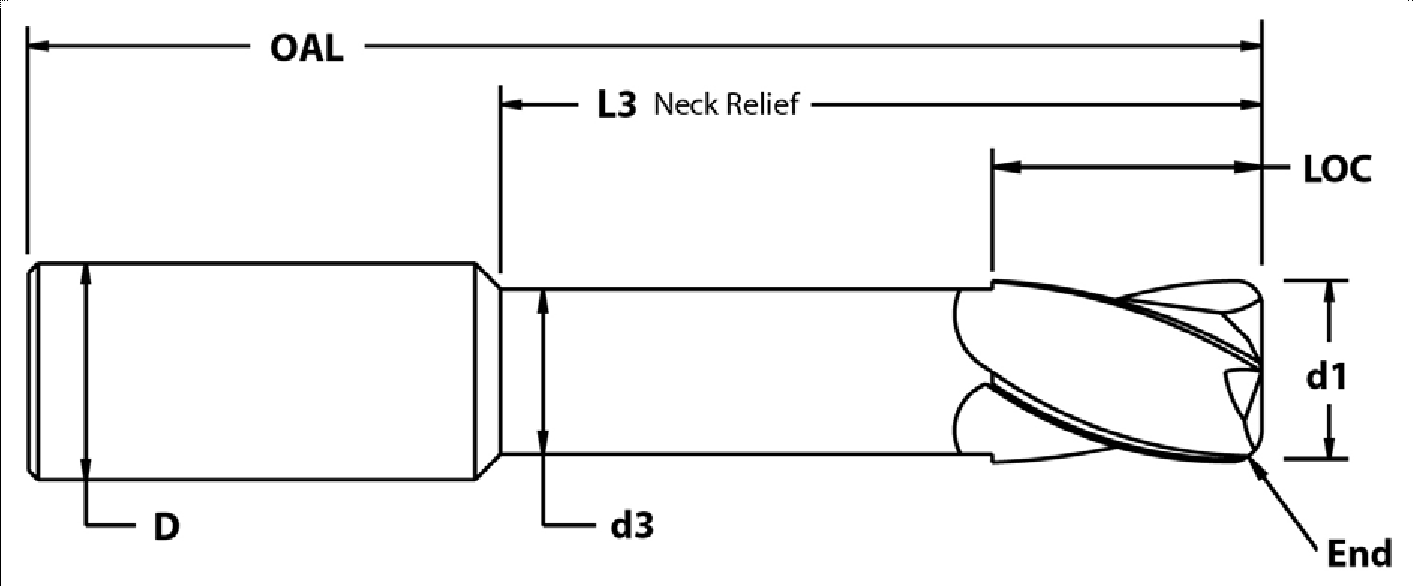

Custom End Mill Request Form

               General Purpose

• Standard Carbide End Mill
• 30 deg Helix Carbide
• 10% Micro Grain Carbide
• Diameter Tolerances: +.0.0000”/-0.0020”

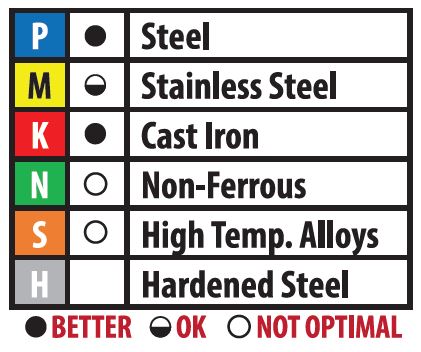

               High Performance

• Special Helix Design
• Variable Pitch to Reduce Chatter
• 10% Micro Grain Carbide
• Diameter Tolerances: +0.0000”/-0.0020”

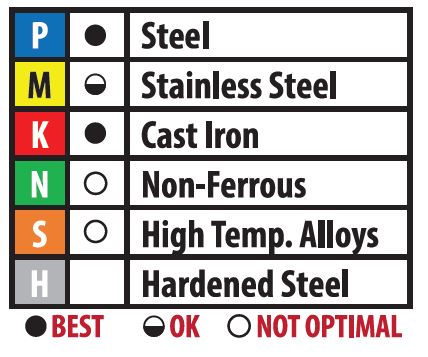

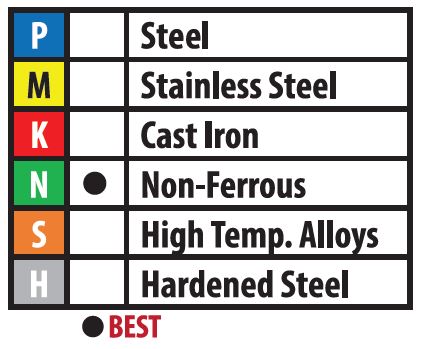

   ULTRA High Performance    /    ULTRA High Performance Aluminum

• Special Helix Design
• Variable Pitch to Reduce Chatter
• 10% Extra Fine Sub-Micron Carbide
• Extremely High Transverse Rupture Strength
• Diameter Tolerances: +0.0000”/-0.0015”

   UHP End Mills engineered for High Efficeincy Machining (HEM)

• Variable Pitch to reduce chatter
• 10% Extra Fine Sub-Micro Grain Carbide with extremely high Transverse Rupture strength
• Diameter Tolerances: +0.0000”/-0.0015”

Coating Guide

ALL4 (Aluminum Chromium Titanium Nitride)

• Grey Color; Ultra High Performance coating with extreme heat, abrasion & wear resistance in ferrous applications

ZrN (Zirconium Nitride)

• Pale Gold Color; Provides high lubricity for machining aluminum & non-ferrous materials

DLC (Diamond Like Carbon)

• Black Color; Extremely hard with very high wear resistance for machining aluminum & non-ferrous materials
